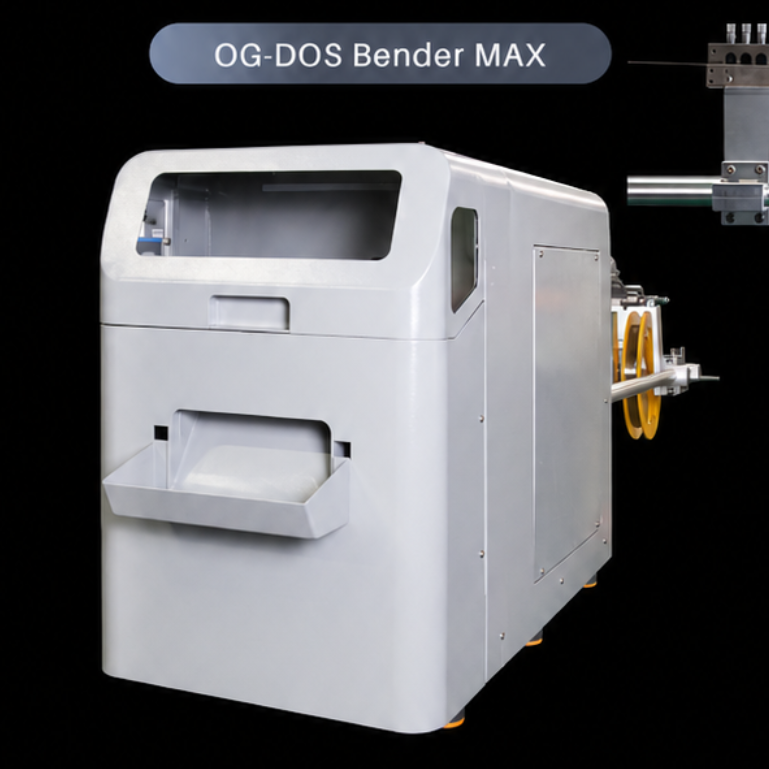

Hawley Retainer Wire Bending Robot
OG-DOS Bender MAX / OG-DOS Bender S
The Hawley Retainer Wire Bending Robot is a chairside digital orthodontic system designed to automate the bending process for Hawley retainer wires and other orthodontic wire appliances. It helps dental labs and orthodontic clinics improve production efficiency, reduce manual bending errors, and create more consistent wire designs with digital precision.
This system supports multiple common orthodontic wire structures, including Adams clasp, labial bow, lingual bow, tongue gate, TPA, Nance bow, labial bumper, welded retainer, and more. With digital design and automated bending, it allows users to complete customized wire appliances faster and with better repeatability.
The system combines AI-assisted tooth segmentation, 3D wire design, automatic camera recognition, manual adjustment, digital wire slot design, arrow head digging holes, digital model fence, and 3D printing model output. It provides a complete digital workflow from model design to wire bending.
Key Features
Automated Wire Bending
Reduces manual labor and improves consistency in Hawley retainer and orthodontic appliance production.
Digital Orthodontic Workflow
Supports 3D design, wire path planning, AI tooth segmentation, and digital model preparation.
Multiple Appliance Applications
Suitable for Adams clasp, labial bow, lingual bow, tongue gate, TPA, Nance bow, labial bumper, welded retainer, and other orthodontic wire designs.
High Precision Performance
Designed with accurate X-axis and Z-axis control for stable and repeatable bending results.
Fast Production Time
Most bending tasks can be completed in approximately 1 minute, helping labs increase daily output.
Supports Common Straight Wire Types
Compatible with multiple straight wire sizes, including round wire options such as 0.90 mm, 0.80 mm, and 0.70 mm.
Chairside or Lab Use
Ideal for orthodontic clinics, dental laboratories, and digital orthodontic production centers.

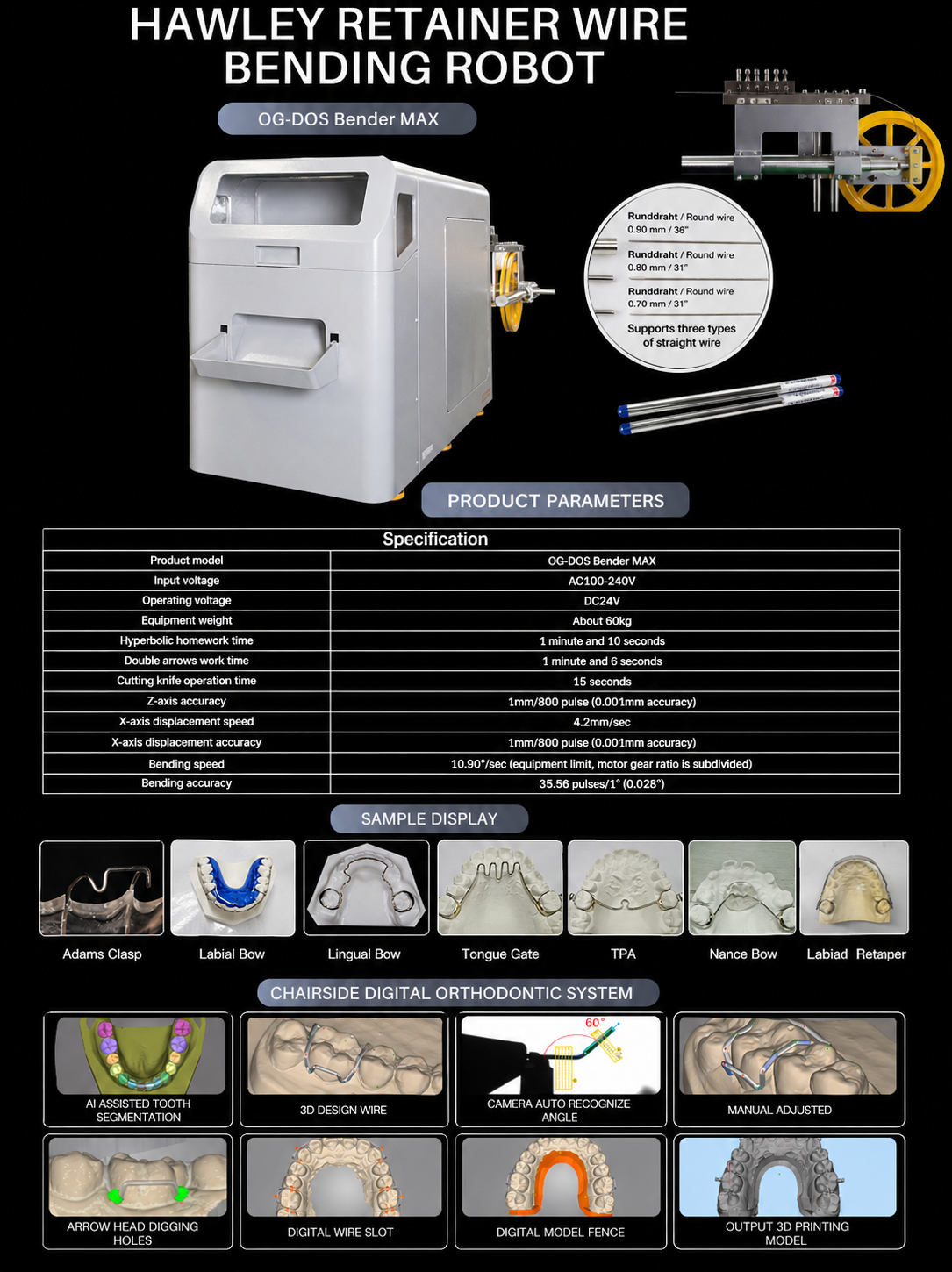

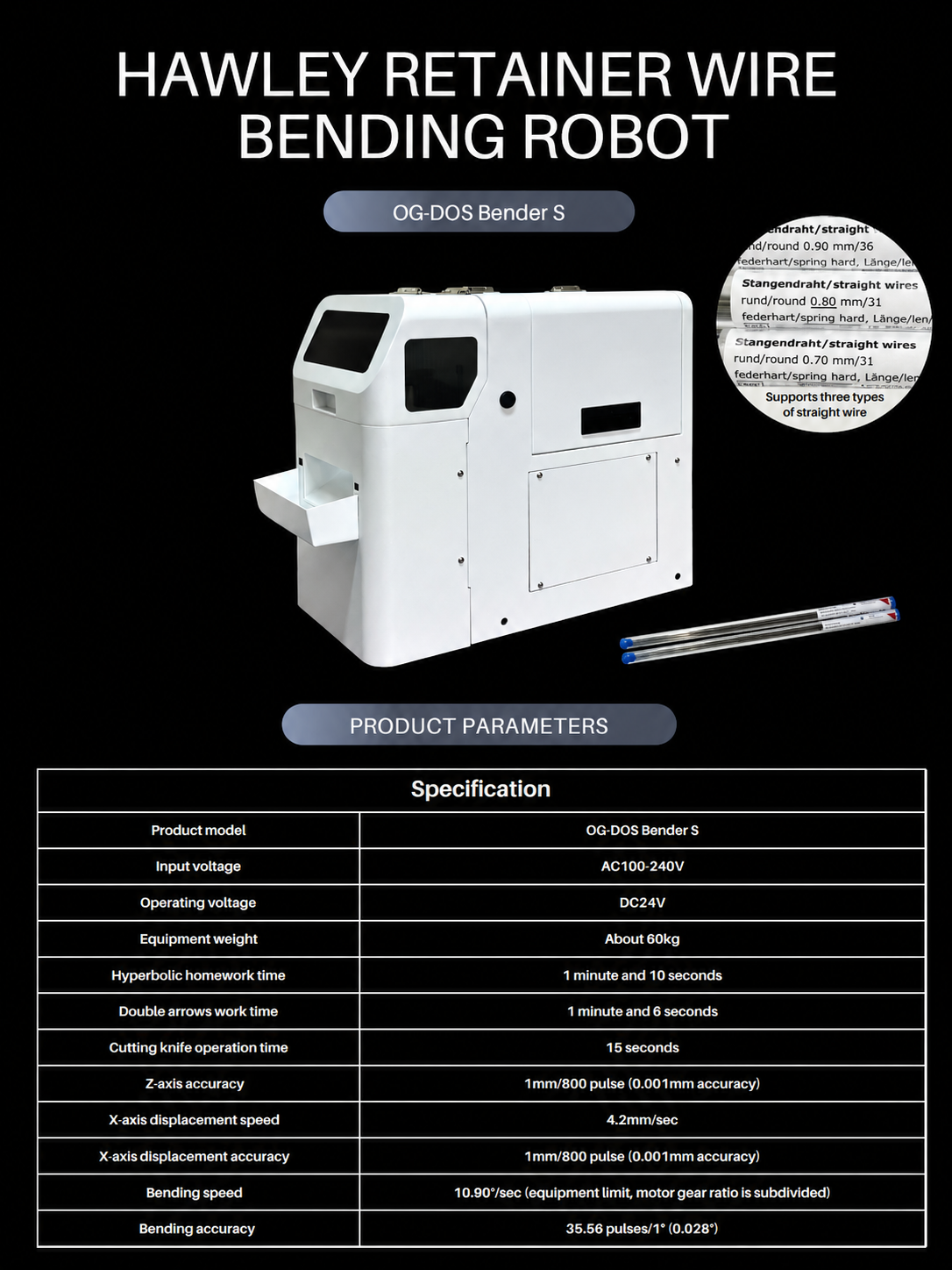

Product Parameters
Product model: OG-DOS Bender MAX / OG-DOS Bender S
Input voltage: AC100–240V
Operating voltage: DC24V
Equipment weight: About 60kg
Hyperbolic homework time: 1 minute and 10 seconds
Double arrows work time: 1 minute and 6 seconds
Cutting knife operation time: 15 seconds
Z-axis accuracy: 1mm / 800 pulse, 0.001mm accuracy
X-axis displacement speed: 4.2mm/sec
X-axis displacement accuracy: 1mm / 800 pulse, 0.001mm accuracy
Bending speed: 10.90°/sec
Bending accuracy: 35.56 pulses / 1°, approximately 0.028°
Ideal For
Orthodontic labs, dental labs, clear aligner and retainer manufacturers, orthodontic clinics, and digital dental production facilities looking to improve wire appliance production efficiency and consistency.
